About the ADAMAS
Introducing the Adamas by RAE, a blend of fine jewellery artistry and thoughtful engineering. Guided by our co-founder and seasoned jewellery designer, William, we set out to bring a touch of the diamond’s timeless beauty to the world of mechanical keyboards. The Adamas reflects this vision, balancing form and function with a careful attention to detail.
The design of Adamas is inspired by the elegance of a diamond, with each curve and line thoughtfully crafted to mirror the facets that create a gemstone’s sparkle. Made from durable 6063 aluminium, the body of Adamas has a subtle strength, while the internal weight gives it a satisfying heft, offering a solid, full-bodied typing experience.

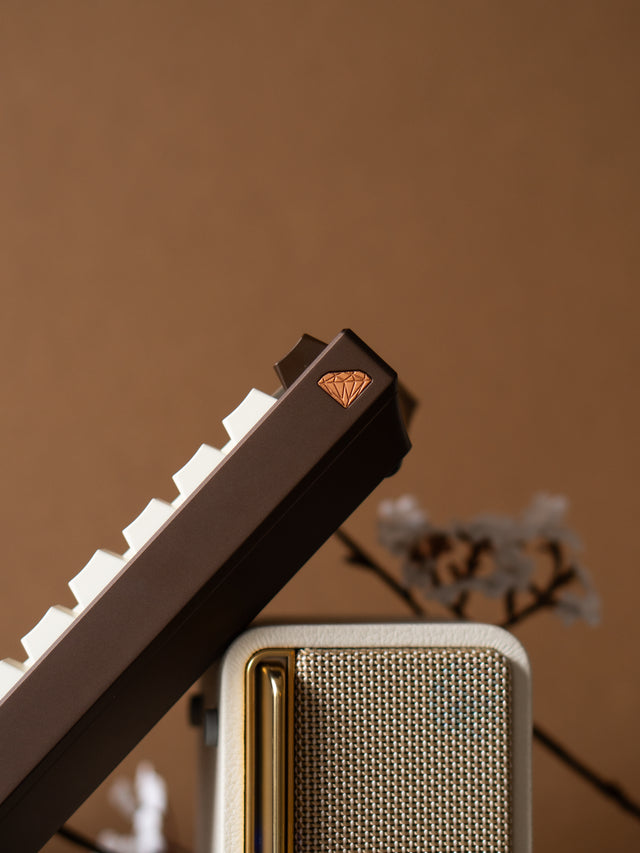

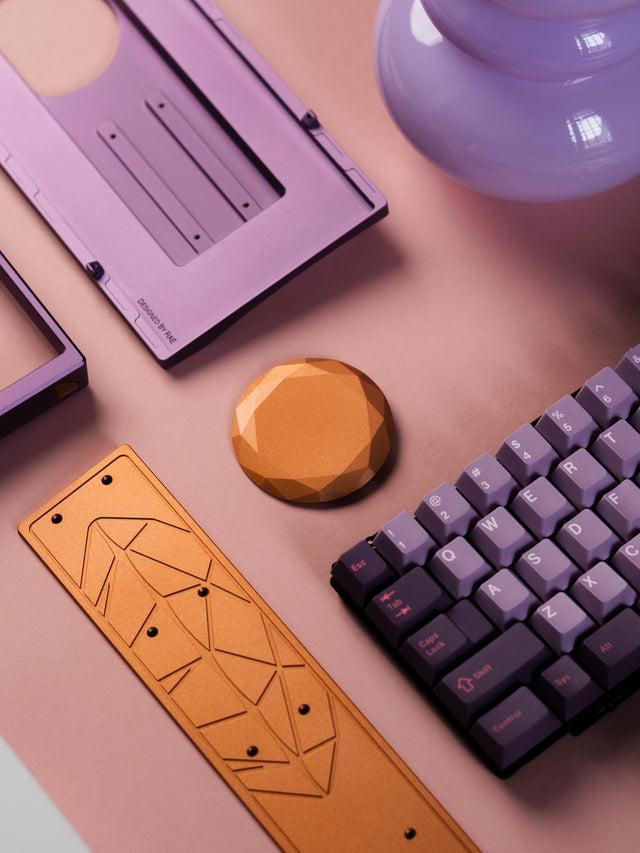

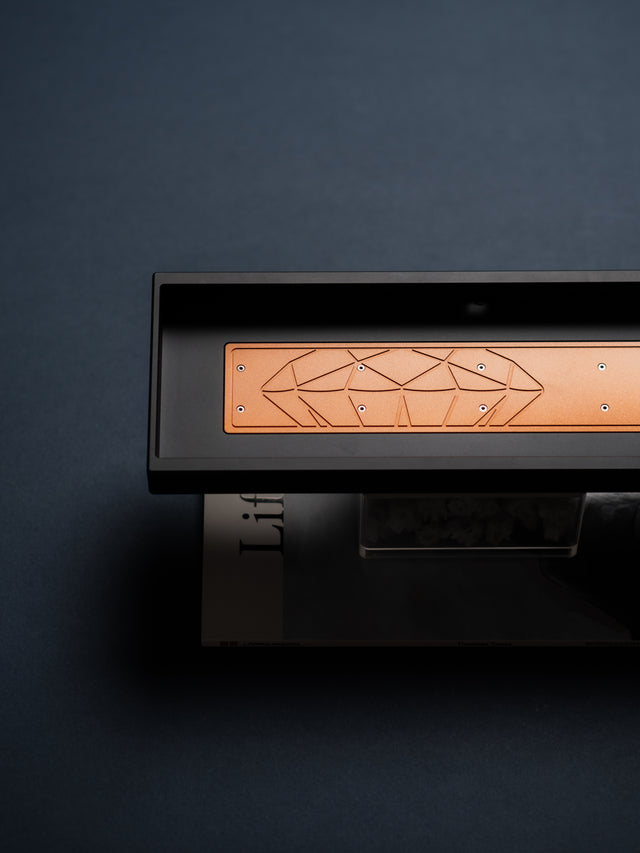

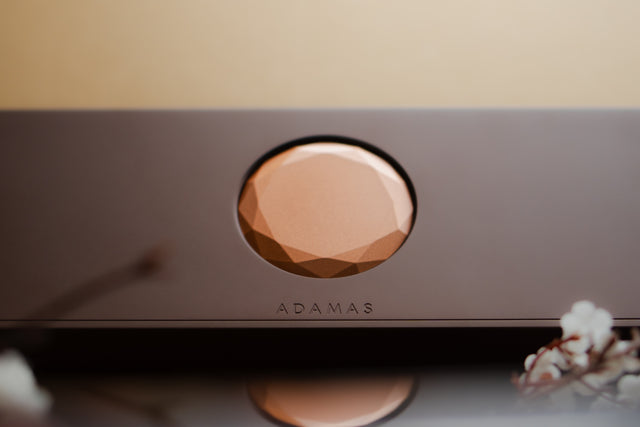

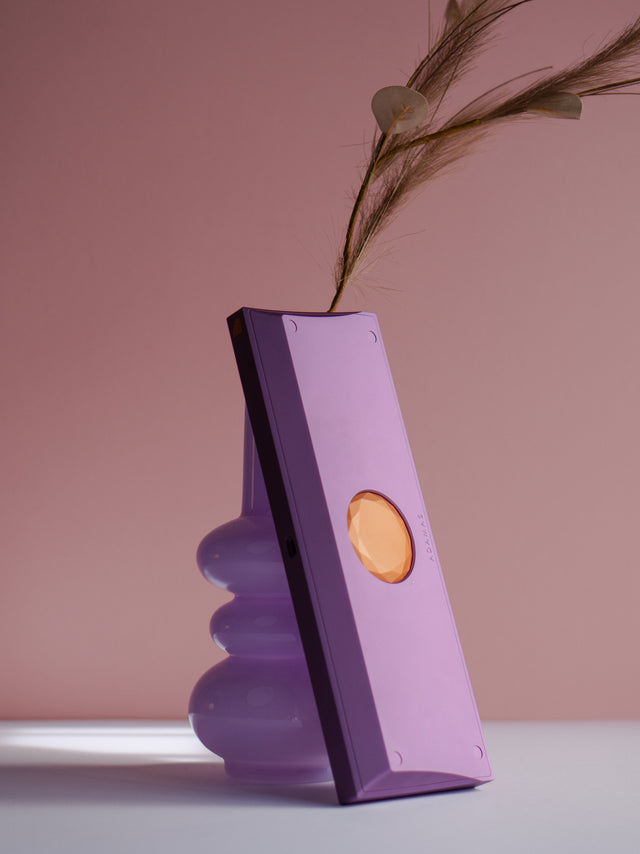

The heart of Adamas lies in its sandblasted copper weights, both internal and external, showcasing our dedication to craftsmanship and precision. The external weight, viewable from the bottom, reflects the top profile of a diamond,a nod to its inspiration. A small badge on the back left corner completes the design, hinting at the clean lines and profile of a diamond.
What's New in R2
Internal Weight Design:
The internal weight has been subtly updated with a new look while maintaining all dimensions of internal and external weight.
Redesigned Case Mounting:

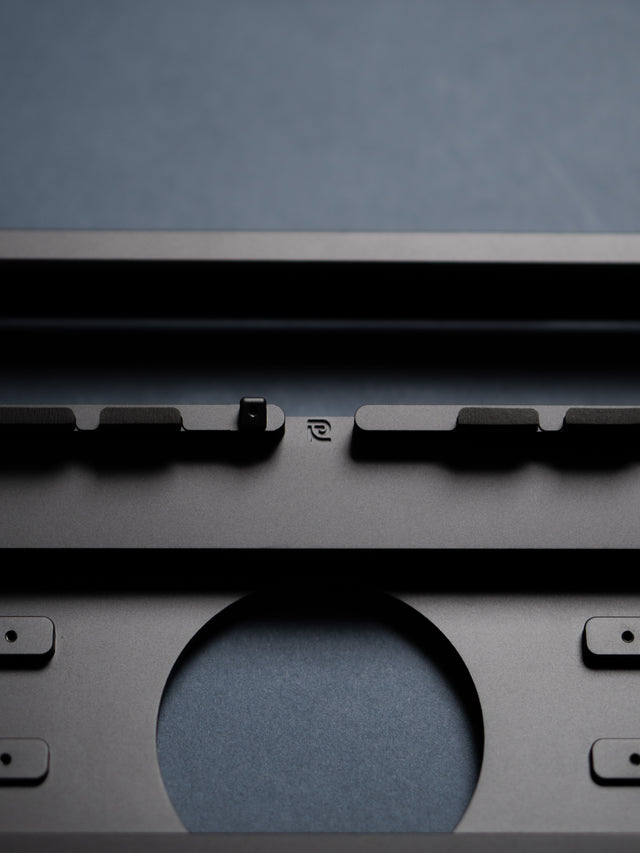

Inspired by other case designs. Case mountings have been replaced with angled screw mountings to avoid potential scuffs during assembly.
Diamond Badge Machining:

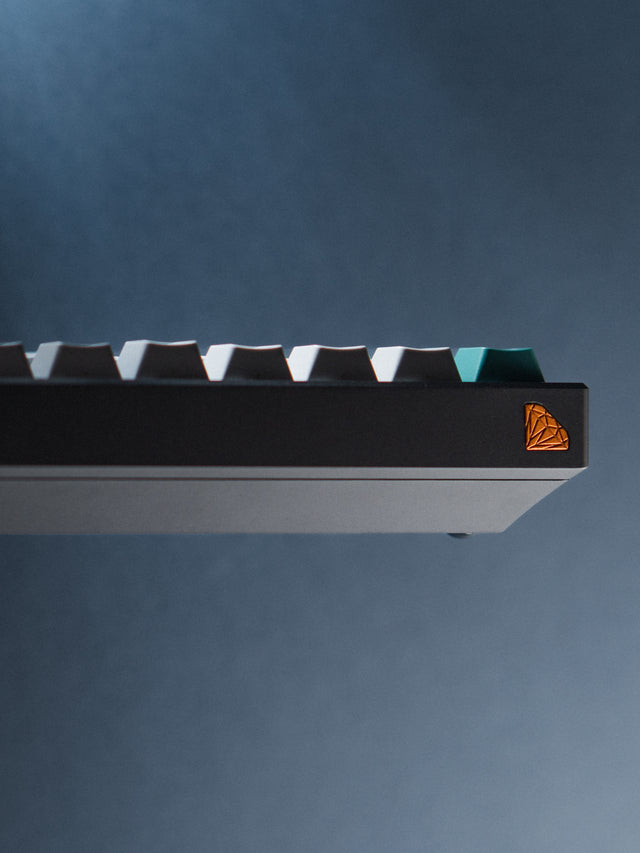

The diamond badge on the back now features inverted lines, replacing the extruded design from R1.
PCB & Plate Revision:
The PCB and Plate design has been updated to accommodate the new top to bottom case mounting points.
New & Familiar Colours:

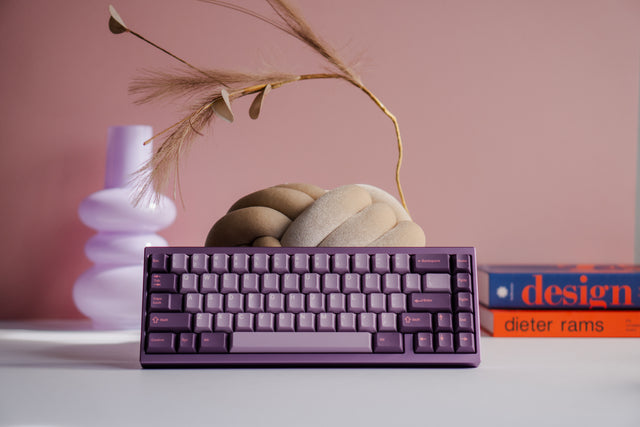

R2 introduces Sheer Lilac and Basalt Grey colour variants with the Desert Taupe variant making a comback due to popular request.
Details & Specs
Case Angle: 7.8°
Front Height: 19.5mm
EKH: 24.1mm
Weight (Un-Built): 1.5kg
Weight (Fully Built): Approx. 1.85kg
Materials: 6063 Anodised Aluminium Top and Bottom, Copper Internal, Copper External, and Copper Badge
Colours: Aurora Silver, Desert Taupe, Coastal Blue, Watercress Green
PCB: Custom Zed65 PCB (Top-Sided USB-C) designed by Mechlovin' Studio - configurable with QMK/VIA
Mounting Style: Gasket Integrated Top-Mount
Vendors & Pricing
International Raffle Group-Buy:
Details will be announced on our Discord Server. Raffle will be hosted by RAE via Google Form only.
Raffle Submission Date:
Saturday, September 27, 2025 11:00 AM MYT - Sunday, September 28, 2025 11:00 PM MYT
Fulfilment Partners:
GEON: South Korea
Divinikey: North America
ktechs: SEA (except Malaysia)
RAE will continue to fulfil all orders within Malaysia and the Rest of the World.
Base Kit Pricing:
- Base Kit (with PCB): MYR 2250
Add-ons Pricing:
- Extra Solder PCB: MYR 180
- Extra Hotswap PCB: MYR 220
- Extra Aluminium Plate: MYR 150
- Extra CF Plate: MYR 170
- Extra PP Plate: MYR 90
- Extra Feet and Gasket Set: MYR 30
Prices may vary on individual vendor websites.
Included in Kit
- 1x RAE Adamas - Case Top & Bottom, Internal & External Weight, and Badge

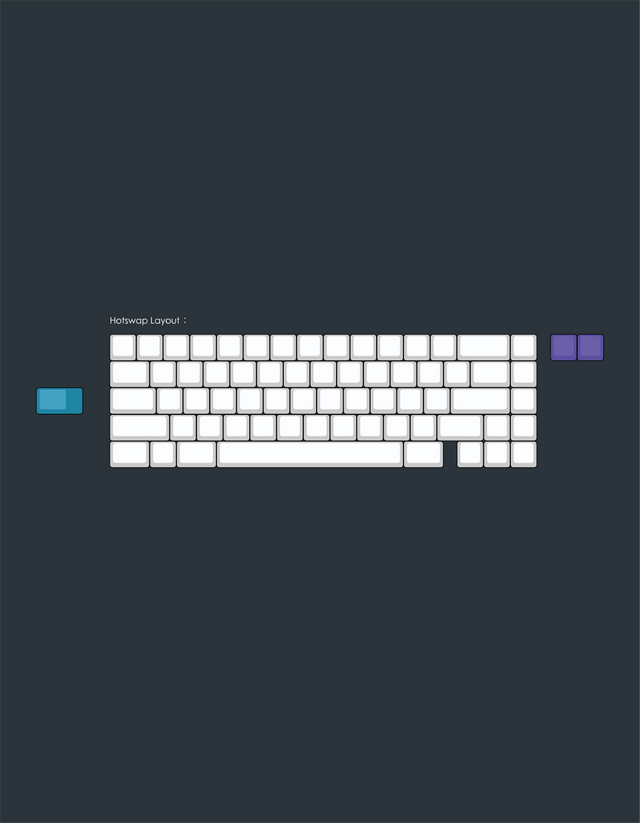

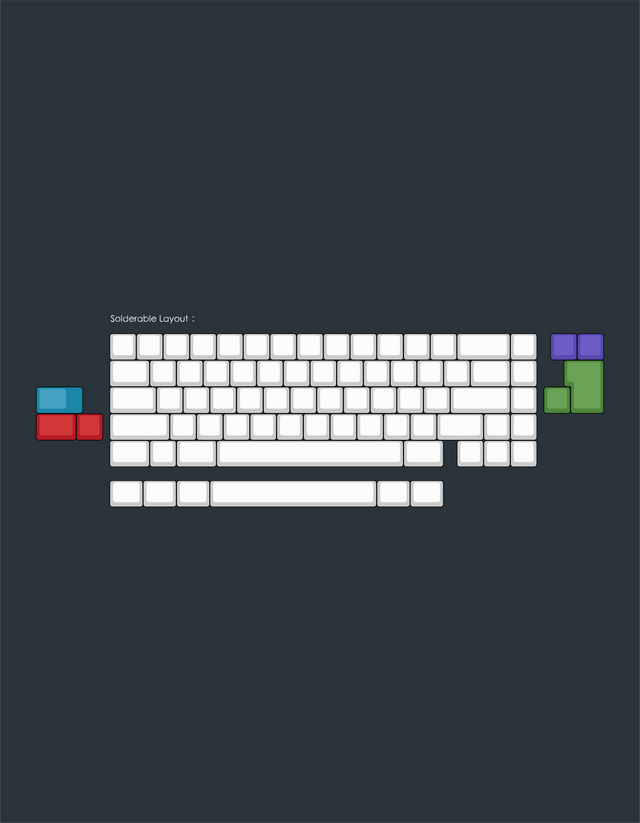

- 1x Solder/ Hotswap Mechlovin' Zed65 Revision 1.2 PCB - 1.6mm
- 1x Full Aluminium Plate - Anodised
- 1x Gasket Set with Extras
- 1x Transparent Dome Feet Set
- 1x Screw Set with Extras
- 1x Authentication Card
- 1x Information/ Specifications Card
- 1x Keyboard Cleaning Cloth
- 1x RAE Hard Carrying Case
- 1x RAE Soft Keyboard Pouch
Adamas R2 FAQ

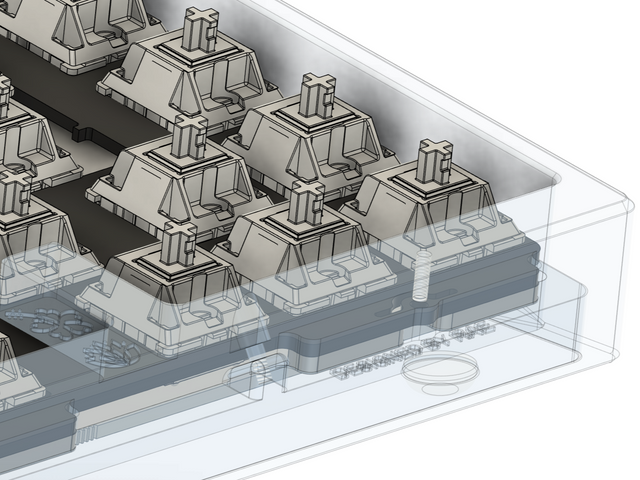

The Adamas introduces a Gasket Integrated Top-Mount, combining traditional top mount with gasket tabs under the plate for a more refined typing experience.

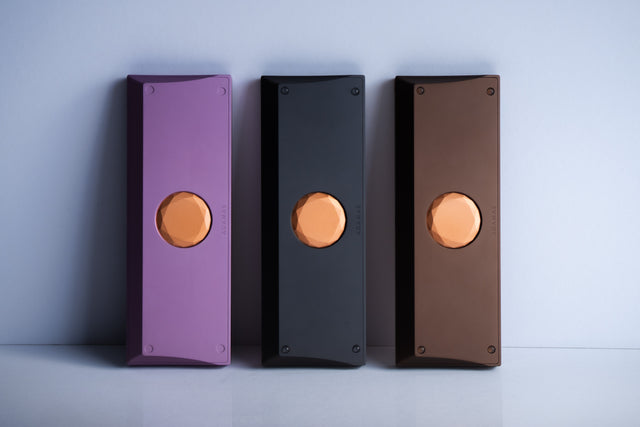

The Adamas R2 is available in Sheer Lilac, Basalt Grey, and Desert Taupe.
The Adamas will come with a CNC-milled, anodised aluminium full plate. CNC-milled, carbon fibre (CF) full plates and polypropylene (PP) full plates will also be available as an optional add-on. Plate files will also be provided at a later date for those who prefer to custom cut their own.
The Adamas will come with a full aluminium plate and in fixed configurations, but additional plate materials will be available for those looking to customize their typing experience.
The Raffle Group Buy will take place on 27th of October, with production completing in Q1/ Q2 2026.
Most probably, but it has yet to be decided.
