About the AURUM
Introducing Aurum by RAE, following the Adamas, we wanted to create something that felt equally deliberate but carried a different kind of presence. Where the Adamas drew from brilliance and facets, Aurum finds beauty in calm precision, in the quiet glow of something enduring.
Aurum is a 60% keyboard inspired by a form I encounter often in my jewellery work, the gold bar. Not for its value, but for its form. The way it holds its geometry with confidence, its smooth planes, and the warmth it reflects. I wanted to translate that same sense of timeless composure into a keyboard that feels balanced, grounded, and lasting.
The foundation of Aurum lies in the pursuit of simplicity refined through detail. Every surface and line was drawn with restraint, shaped to let proportion and finish speak louder than embellishment. From the first concept sketch to the third and final prototype, every iteration was a process of refinement. The goal was finding harmony between sharpness and softness, structure and warmth.
Details & Specs
- Case Angle: 7.8°
- Front Height: 17.7mm - 19.5mm
- Weight (Un-Built): 1.6kg
- Weight (Fully Built): Approx. 1.95kg
- Case Material: 6063 Anodised Aluminium

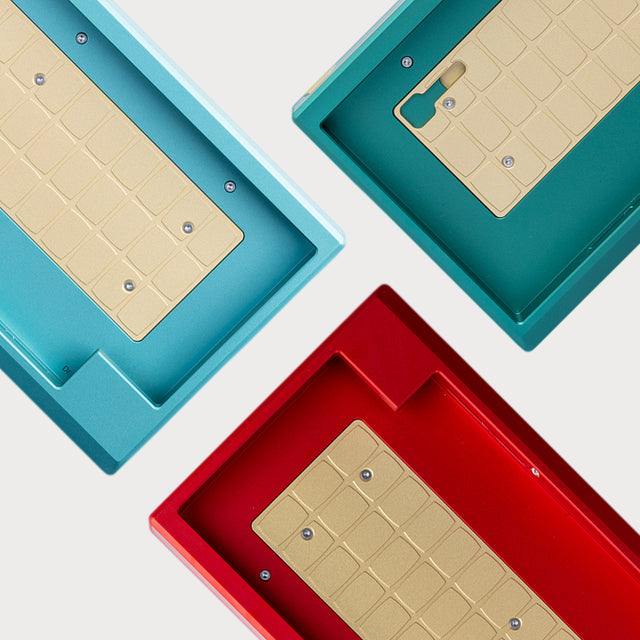

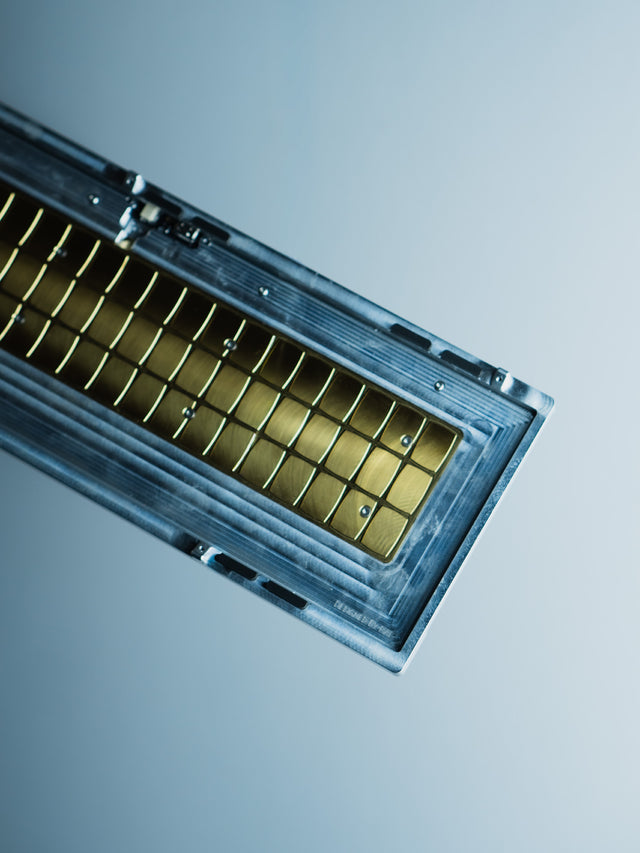

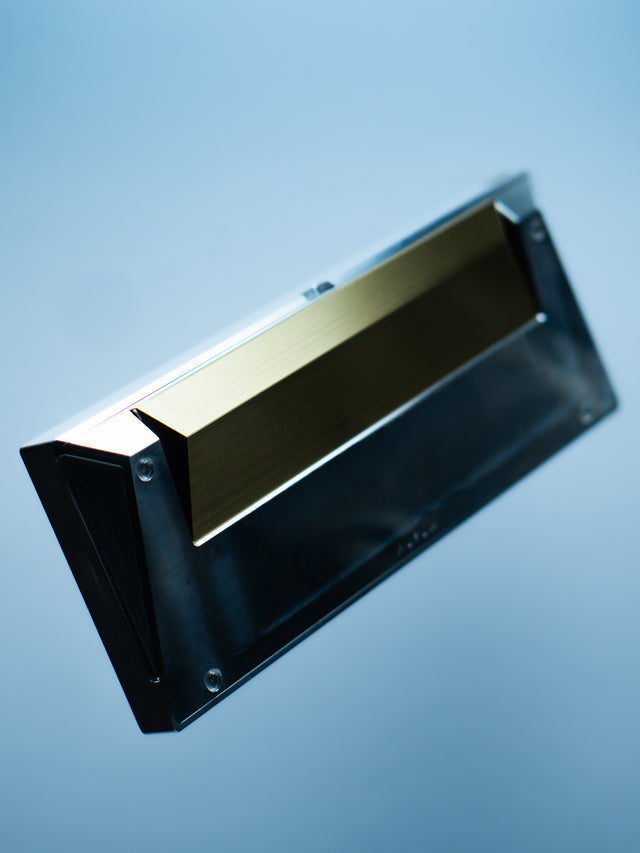

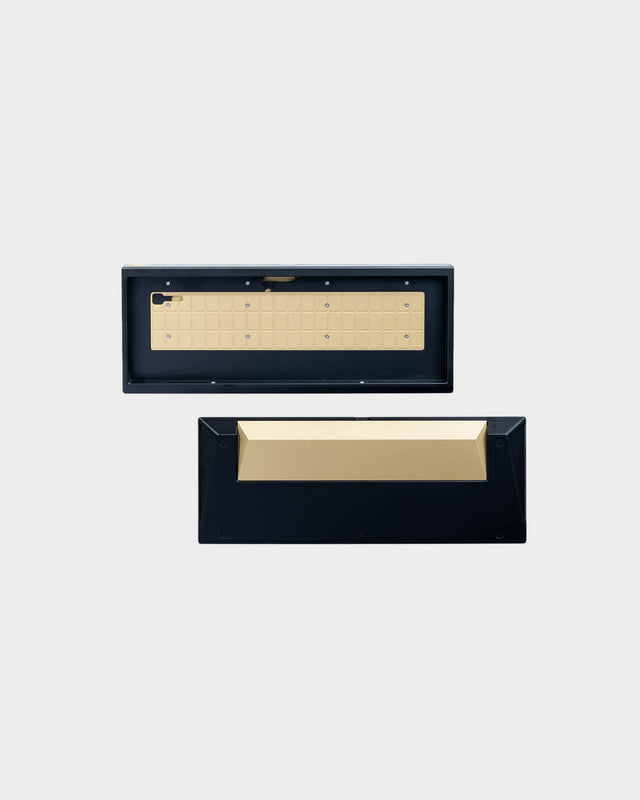

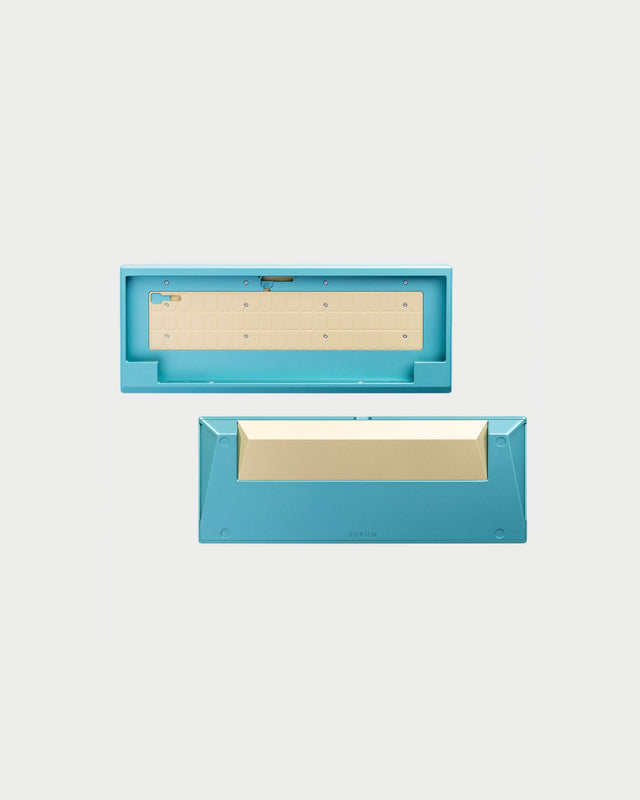

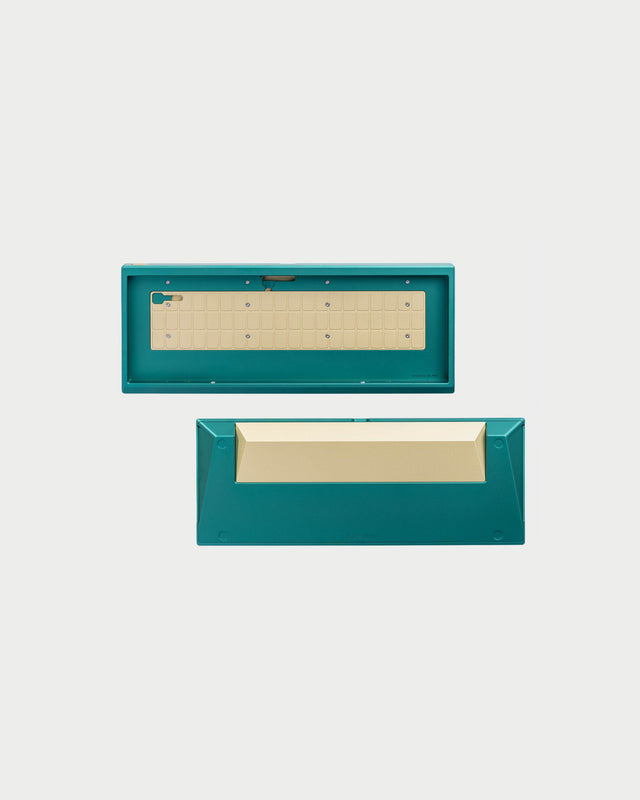

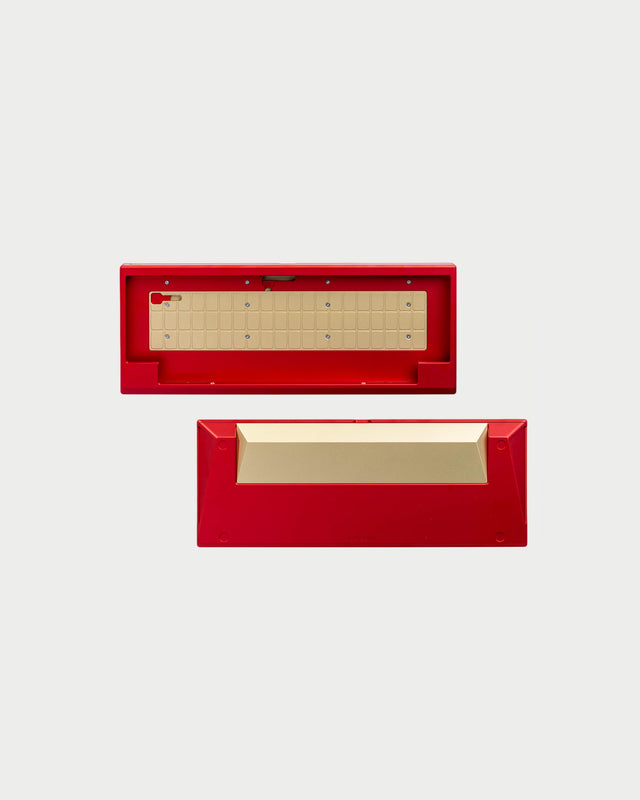

- Internal Weight Material: Brass
- External Weight Material: Brass

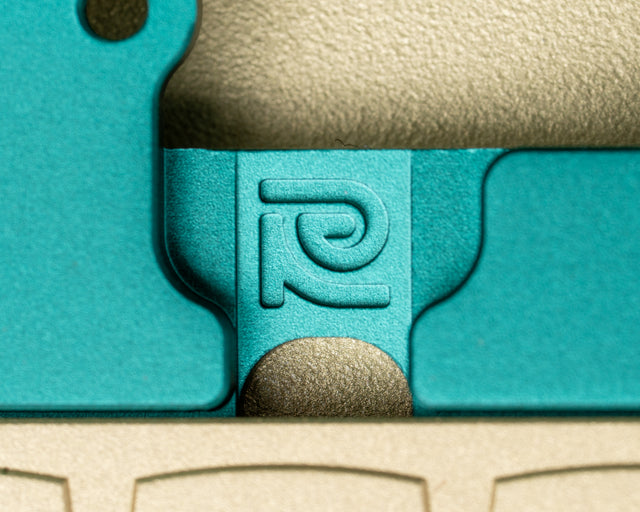

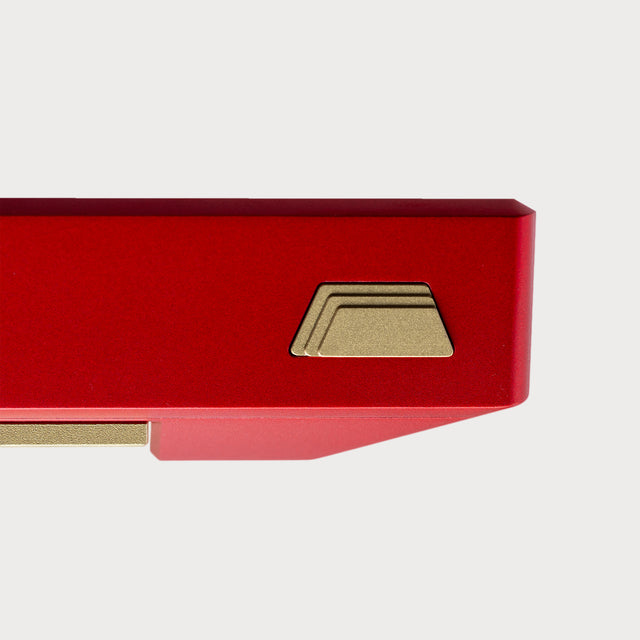

- Badge Material: Brass

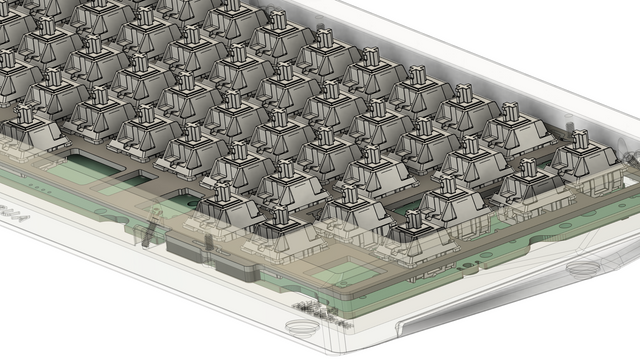

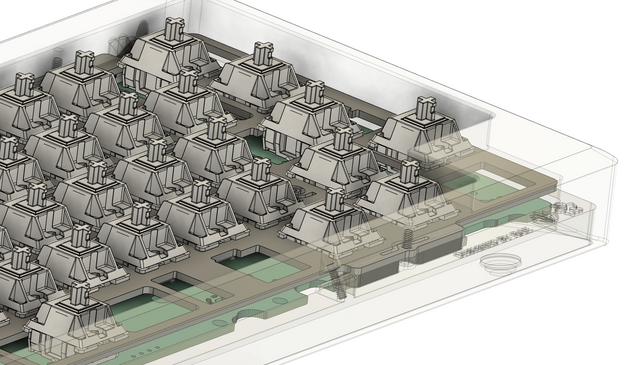

- Mounting Style: Gasket Integrated Top-Mount
- PCB: Custom Mechlovin' Studios Zed65 PCB with S1 daughterboard (JST to SUR) - QMK/VIA configurable

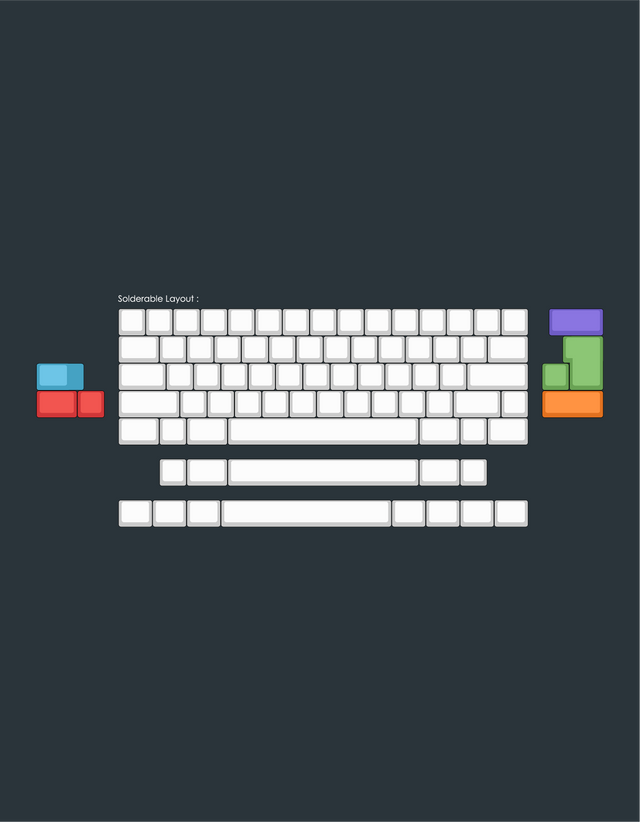

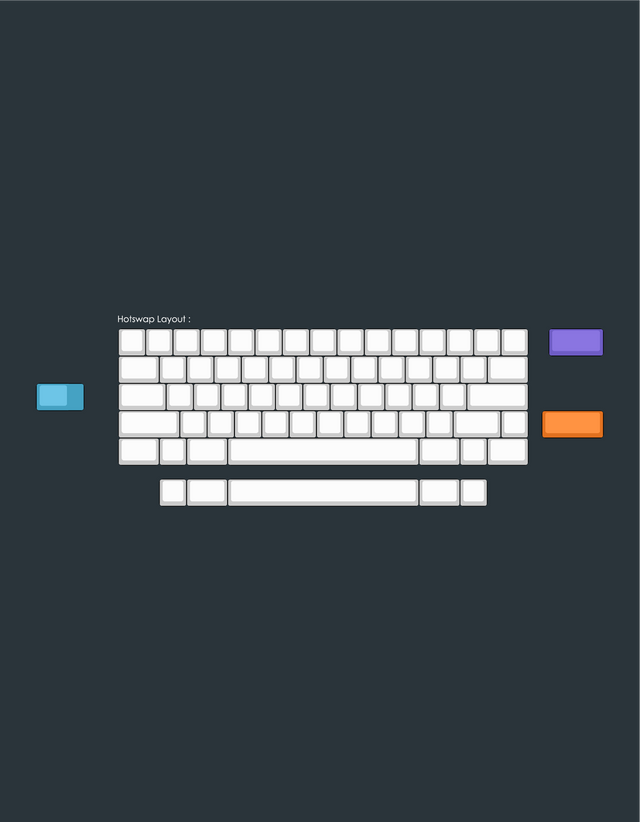

- Layouts: WK & HHKB
- Colours: Obsidian Black, Heritage Green, Cerulean Blue, Vermillon Red
Vendors & Pricing
International Raffle Group-Buy:
Details will be announced on our Discord Server.
Raffle Submission Date: TBC
Inernational Raffle will be hosted by RAE only.
CN Raffle will run seperately hosted by KBDFans Only.
Fulfilment Vendors:
NA: Divinikey
KR: GEON
CN: KBDfans
SEA: Ktechs
ROW+MY+VN: RAE
Base Kit Pricing:
- Base Kit (with PCB): MYR 1980
Add-ons Pricing:
- Extra Solder PCB: MYR 180
- Extra Hotswap PCB: MYR 220
- Extra Aluminium Plate: MYR 150
- Extra CF Plate: MYR 170
- Extra PP Plate: MYR 90
- Extra Feet and Gasket Set: MYR 30
Included in Kit
- 1x Aurum by RAE
- 1x Solder/ Hotswap Mechlovin' x Aurum Zed60 PCB - 1.6mm
- 1x Full Aluminium Plate - Anodised
- 1x Gasket Set with Extras
- 1x Transparent Feet Set with Extras
- 1x Screw Set with Extras
- 1x Authentication Card
- 1x Information/ Specifications Card
- 1x Keyboard Cleaning Cloth
- 1x RAE Hard Carrying Case
- 1x RAE Soft Keyboard Pouch
Aurum FAQ
The Aurum utilises the Gasket Integrated Top-Mount, combining traditional top mount with gasket tabs under the plate (as seen used on the Adamas).

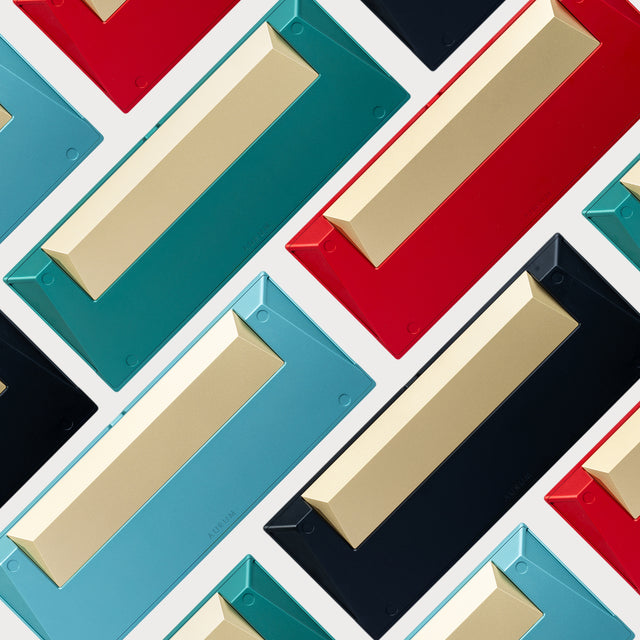

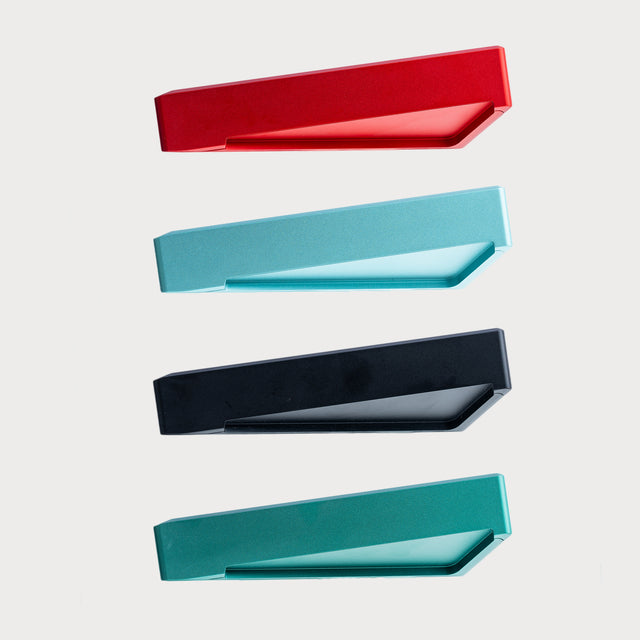

The Aurum comes in Obsidian Black, Heritage Green, Cerulean Blue, and Vermillon Red.
The Aurum will come with a CNC-milled, anodised aluminium full plate. CNC-milled, carbon fibre (CF) full plates or polypropylene (PP) full plates will also be available as an optional add-on. Plate files will also be provided at a later date for those who prefer to custom cut their own.
The Aurum will come with a full aluminium plate in fixed configurations, additional plate materials will be available to purchase for those looking to customize their typing experience.
We anticipate starting the Raffle Group Buy in January 2026, with production estimated to complete in mid-late Q2 2026.
Most probably, but it has yet to be decided.
