Adamas R2 Group Buy Updates - Ongoing
Raffle GB Details
Raffle GB: -
Raffle Link: https://forms.gle/Ld7q8u3PnYLhF9bt6
Ongoing Updates
August 2025
- 25.08: All R2 coloured prototypes have been received.
- 25.08: All orders for Adamas carry case and packaging items have been placed ahead of time.
October 2025
- 17.10: All orders for Adamas R2 Raffle GB have been placed with our manufacturing hub.
New in R2
-
Internal Weight Design: The internal weight has been subtly updated with a new look while maintaining all dimensions of internal and external weight.
-
Redesigned Case Mounting: Inspired by other case designs. Case mountings have been replaced with angled screw mountings to avoid potential scuffs during assembly.
-
Diamond Badge Machining: The diamond badge on the back now features inverted lines, replacing the extruded design from R1.
-
PCB & Plate Revision: The PCB and Plate design has been updated to accommodate the new top to bottom case mounting points.

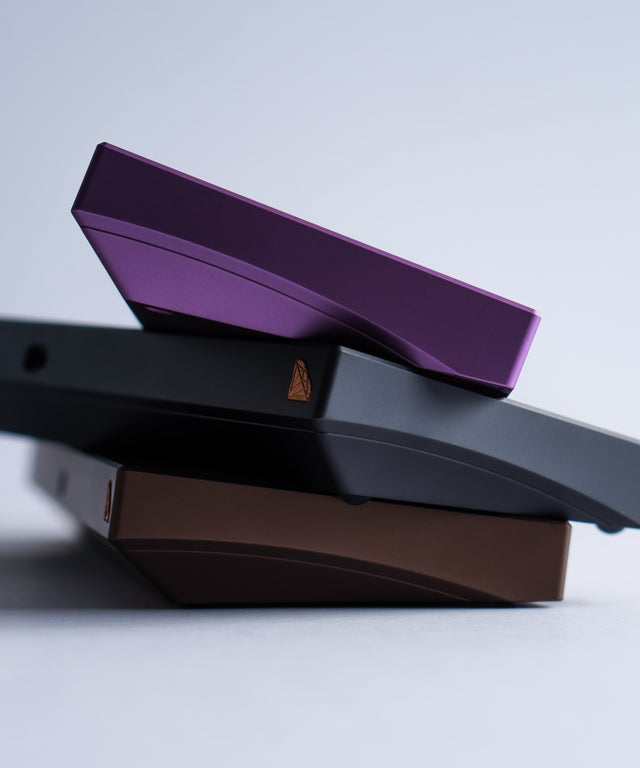

- New & Familiar Colours: R2 introduces Sheer Lilac and Basalt Grey colour variants with the Desert Taupe variant making a comback due to popular request.
Details & Specs
- Case Angle: 7.8°
- Front Height: 19.5mm
- EKH: 24.1mm
- Weight (Un-Built): 1.5kg
- Weight (Fully Built): Approx. 1.85kg
- Materials: 6063 Anodised Aluminium Top and Bottom, Copper Internal, Copper External, and Copper Badge
- Mounting method: Gasket Integrated Top Mount
- PCB: Custom Zed65 PCB (Top-Sided USB-C) designed by Mechlovin' Studio - configurable with QMK/VIA
Pricing
- Base Kit - with PCB: MYR2250
- Solder PCB: MYR180
- Hotswap PCB: MYR220
- Extra Aluminium Plate: MYR150
- Extra CF Plate: MYR170
-
Extra PP Plate: MYR90
- Extra Feet and Gasket Set: MYR30
Layout Options
- Solderable Layout:
- Hotswap Layout:
Included in Kit
- 1x RAE Adamas - Case Top & Bottom, Internal & External Weight, and Badge
- 1x Solder/ Hotswap Mechlovin' Zed65 Revision 1.2 PCB - 1.6mm
- 1x Full Aluminium Plate - Anodised
- 1x Gasket Set with Extras
- 1x Transparent Dome Feet Set with Extras
- 1x Screw Set with Extras
- 1x Authentication Card
- 1x Information/ Specifications Card
- 1x Keyboard Cleaning Cloth
- 1x RAE Hard Carrying Case
- 1x RAE Soft Keyboard Pouch
FAQ
-
Q: What is the mounting style of the Adamas?
A: The Adamas introduces a Gasket Integrated Top-Mount, combining traditional top mount with gasket tabs under the plate for a more refined typing experience.
-
Q: What colors are available in R2?
A: The R2 Adamas is available in Basalt Grey, Sheer Lilac, and Desert Taupe.
-
Q: What plate options will be offered for the Adamas?
A: The Adamas will come with a CNC-milled, anodised aluminium full plate. CNC-milled, carbon fiber (CF) and polypropylene (PP) full plates will also be available as an optional add-on. Plate files will also be provided at a later date for those who prefer to custom cut their own.
-
Q: Will there be customization options?
A: The Adamas will come with a full aluminium plate and in fixed configurations, but additional plate materials will be available for those looking to customize their typing experience.
-
Q: When will the Group Buy take place?
A: The Raffle Group Buy will take place on 27th of September 2025, with production completing in Q1/ Q2 2026.
-
Q: Will there be In-Stock extras for sale after the GB?
A: Most probably, but it has yet to be decided.
-
Q: How can I stay updated on the progress?
A: Join our Discord community and follow us on Instagram, Facebook and RAE's Website for the latest updates.
